Changing Material Conditions Moisture may vary between material sources, storage areas and production periods. This can affect material evaluation, production planning, process consistency and moisture compensation.
Industry Solution
Sand & Aggregate Moisture Control Solution
Moisture variation in sand and aggregates can affect weighing accuracy, batching control and production consistency.
The MS-204 Online Microwave Moisture Analyzer provides continuous moisture information at selected material-handling points, helping operators identify variation earlier and improve process adjustment.
Suitable Process Media:
Washed Sand · Manufactured Sand · Fine Aggregates · Mineral Aggregates · Selected Construction Aggregates
The MS-204 Online Microwave Moisture Analyzer provides continuous moisture information at selected material-handling points, helping operators identify variation earlier and improve process adjustment.
Suitable Process Media:
Washed Sand · Manufactured Sand · Fine Aggregates · Mineral Aggregates · Selected Construction Aggregates
Industry Challenges
The Problems This Solution Addresses
Batching and Weighing Variation Unmeasured water in sand and aggregates may influence dry-material quantity, batch proportions, water addition and mixing consistency.
Delayed Process Adjustment Delayed moisture information may result in slower operating decisions, increased manual intervention, inconsistent production conditions and additional sampling workload.
Engineered Response
MOSYE Solution
Specific Solution
The MS-204 uses an insertion-type microwave probe to measure moisture directly inside the material flow.
An application-specific calibration model converts the microwave response into continuous moisture data. Laboratory testing can continue to support calibration and routine verification.

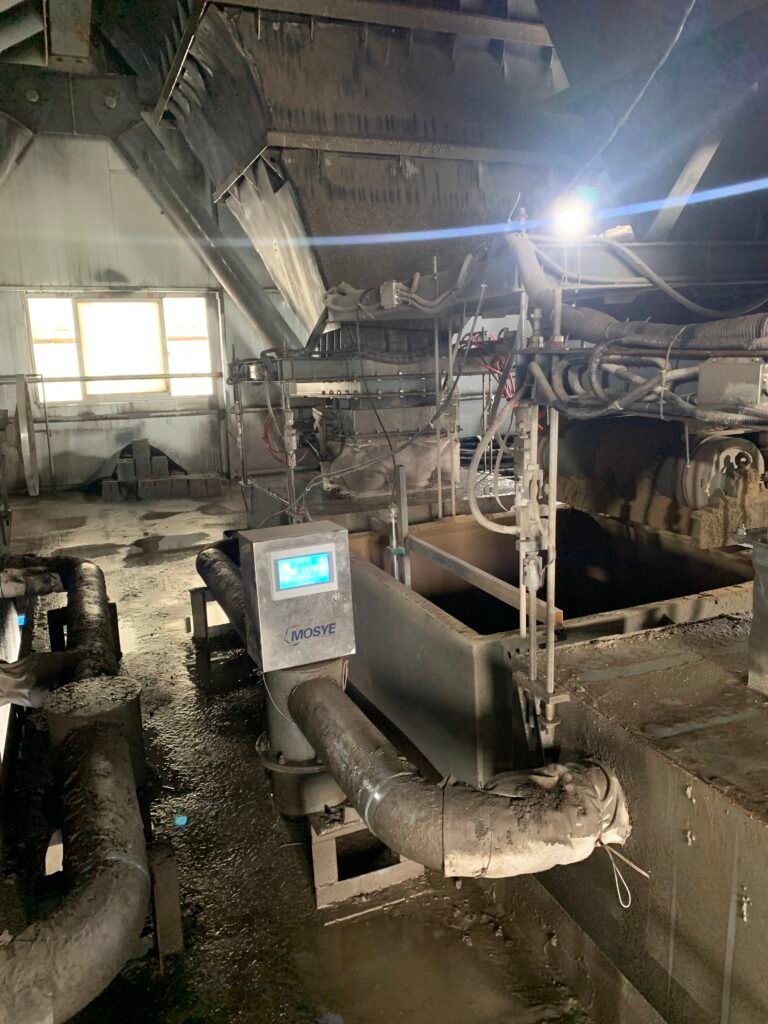

Typical Measurement Points:
Hopper Outlets · Weighing Hoppers · Transfer Chutes · Stable Material-Flow Sections
Final installation depends on particle size, bulk density, moisture range, material flow, abrasiveness, temperature and equipment geometry.
An application-specific calibration model converts the microwave response into continuous moisture data. Laboratory testing can continue to support calibration and routine verification.
Typical Measurement Points:
Hopper Outlets · Weighing Hoppers · Transfer Chutes · Stable Material-Flow Sections
Final installation depends on particle size, bulk density, moisture range, material flow, abrasiveness, temperature and equipment geometry.
Solution Features
1. Continuous In-Process Measurement, Direct Material Measurement Provides continuous moisture information at the selected material-handling point. The insertion-type probe measures directly within a suitable and representative material flow. 2. Aggregate-Specific Calibration The calibration model is developed according to the selected aggregate and expected moisture range. 3. Flexible Process Connection, Real-Time Signal Output Supports suitable threaded or flange installation according to the equipment structure. Provides real-time moisture signals for trends, alarms and batching-process monitoring. 4. Batching-System Integration Moisture data can be connected with PLC, DCS or batching-control systems. Final suitability, probe structure, wear protection and installation arrangement must be confirmed through application evaluation and installation review.
Why MOSYE
Solution Advantages
Earlier Variation Detection Online measurement helps operators identify changing sand and aggregate moisture conditions between laboratory tests.
Improved Batching Control Moisture data can support more accurate evaluation of the dry-material quantity used in batching and mixing.
Reduced Sampling Dependency Continuous measurement can reduce routine sampling workload while laboratory testing remains available for calibration and verification.
Improved Process Traceability Moisture data can support process trends, alarms, moisture-compensation records and production reviews through connection with plant-control or batching systems. Automatic moisture compensation requires application-specific engineering, validation and commissioning.
Measurement Equipment
Recommended Devices
Tailored Process Guidance
Improve Your Sand and Aggregate Moisture Control
Share your material type, particle size, expected moisture range, equipment structure and proposed installation conditions with MOSYE application engineers.
Request Solution Evaluation
