1、 Direct In-Process Measurement

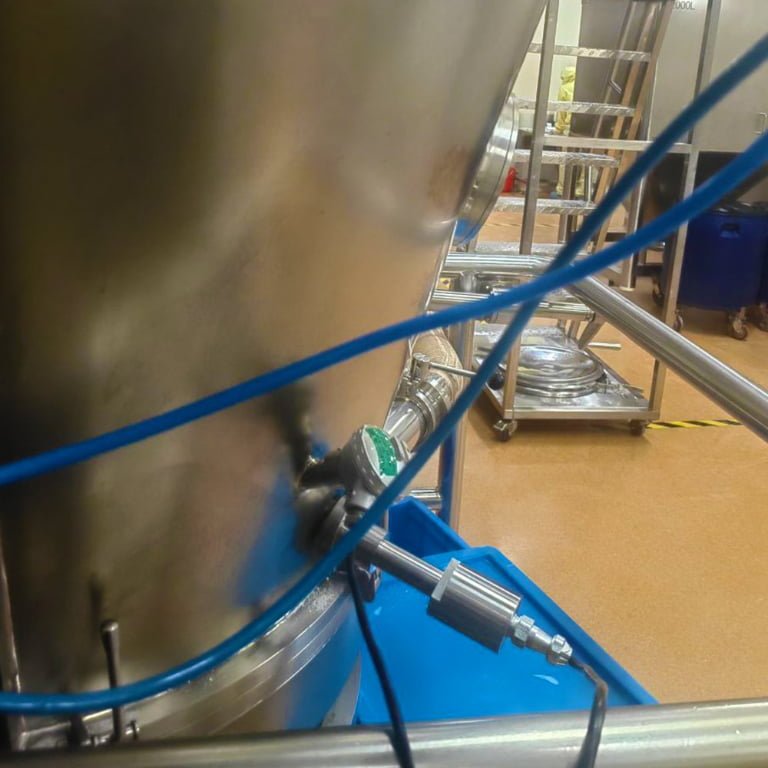

The insertion-type probe measures moisture directly inside pipelines, tanks, vessels and process equipment, reducing dependence on manual sampling.

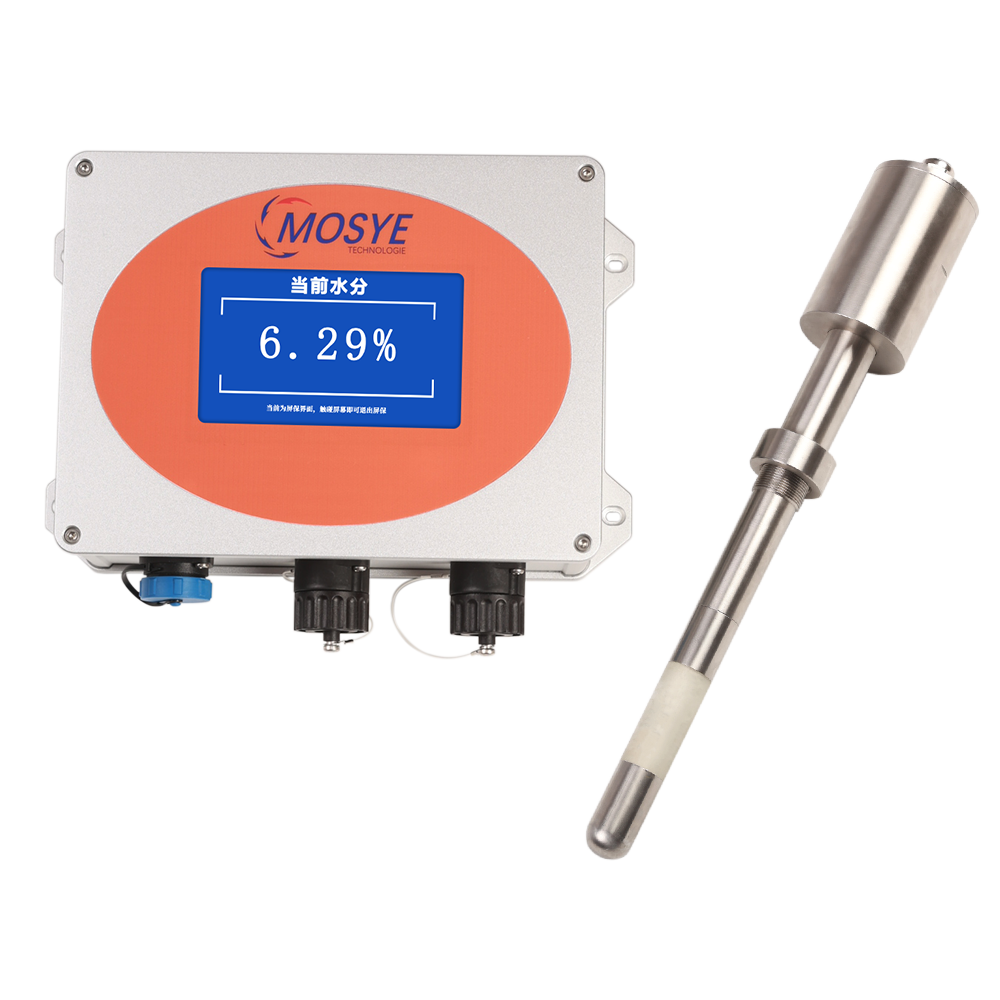

MS-204 Online Microwave Moisture Analyzer
Direct In-Process Moisture Measurement
The MS-204 provides continuous insertion-type microwave moisture measurement for selected solids, liquids and slurries.

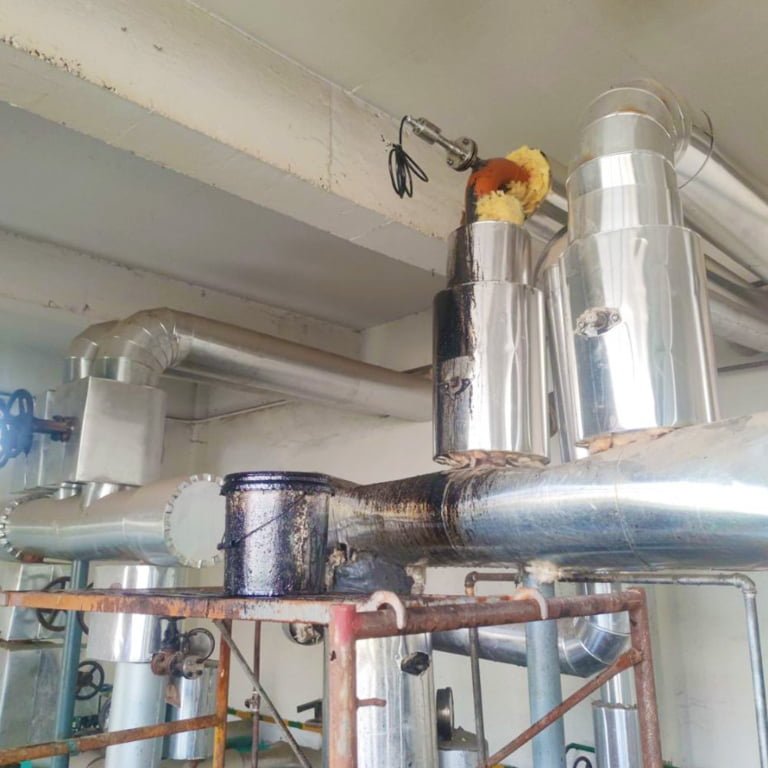

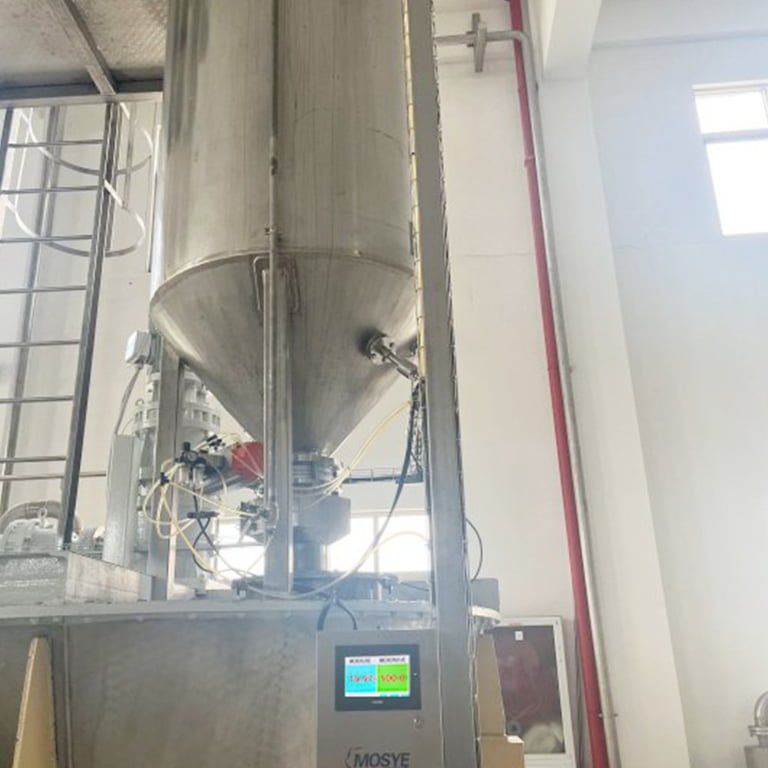

Designed for direct installation in pipelines, tanks, vessels and process equipment, it provides real-time moisture data for industrial process monitoring and control.
Core Information
| Detection Target | Typical Applications |
|---|---|
| Moisture | Process Pipelines · Storage Tanks · Mixing Vessels · Silo, Hoppers · Chutes · Industrial Process Equipment |
Product Overview
Continuous Moisture Measurement Without Sampling Delay
The MS-204 is an insertion-type microwave moisture analyzer for continuous measurement directly inside industrial process materials.
Installed in pipelines, tanks, vessels or material-handling equipment, the probe provides real-time moisture data and helps reduce dependence on periodic manual sampling. Final configuration depends on the material characteristics, process conditions and equipment structure.
Suitable Process Media
Suitable for selected:
Solids, powders and granules
Process liquids
Industrial slurries
Final suitability depends on material characteristics, moisture range, temperature, pressure and installation conditions.
Measurement Principle
The MS-204 transmits microwave signals into the measured material. Changes in moisture affect microwave energy attenuation and electromagnetic response. An application-specific calibration model converts the measured response into continuous moisture values.
Key Advantages
2、 Fast Process Feedback
An output response time of 500 ms supports continuous moisture monitoring, earlier detection of moisture variation and timely process adjustment.
3、 Industrial Probe Design
The probe features an SS304 housing and special PE measurement surface for direct contact with selected industrial process materials.
4、 Flexible Installation and Integration
Supports threaded or flange mounting, 4–20 mA output and RS485 communication for integration with PLC and DCS systems.
Technical Specifications
Available Configurations
1
Configuration 1
MS-204 — Standard Configuration：Insertion-type probe for pipelines, tanks, vessels and process equipment. Supports threaded or flange installation for temperatures up to +80°C.
2
Configuration 2
High-Temperature Option：Available for selected applications at temperatures up to +120°C. Probe dimensions and process connection are selected according to the operating conditions.
