MS-X590 Automatic Whole-Truck Moisture Measurement System

MS-X590 Series Automatic Whole-Truck Waste Paper Moisture Measurement System

Product Introduction

The MS-X590 provides automatic, non-contact moisture measurement for loaded recovered-paper trucks before unloading.
As the vehicle passes through the microwave inspection area, the system collects multiple measurements and calculates a representative truckload-level average moisture result for receiving quality control.

Core Information

Detection Target	Typical Applications
Moisture	Pre-Unloading Inspection · Truckload Moisture Evaluation · Supplier Quality Evaluation · Receiving Quality Control

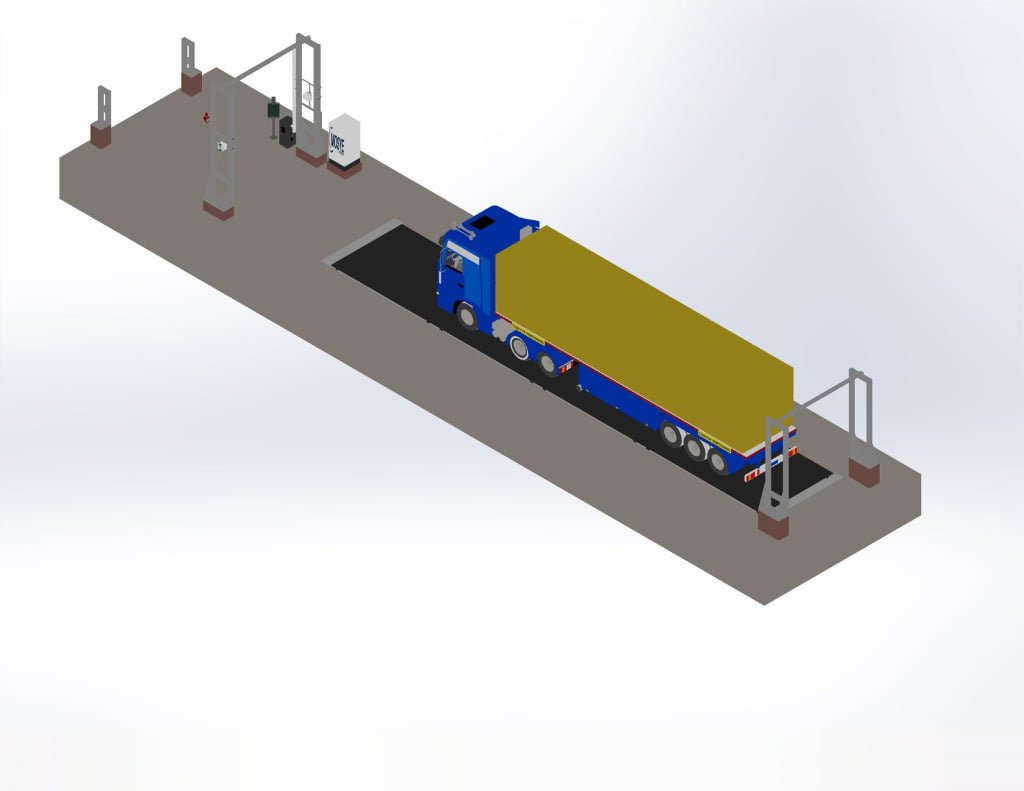

MS-X590 Automatic Whole-Truck Moisture Measurement System image

Product Overview

Overview

Traditional recovered-paper moisture inspection often relies on limited manual sampling after vehicle arrival, which may not fully represent moisture variation across the truckload.
The MS-X590 measures loaded recovered-paper trucks during controlled passage through the microwave inspection area.
The system automatically collects multiple measurements, calculates a representative average moisture result and records the inspection data for receiving and quality management.
The measurement result provides a truckload evaluation reference. Final moisture deduction and commercial settlement remain subject to the agreed inspection procedure.

Application Scope

Grain and food materials, tobacco materials, Ejiao products, chemical and battery materials
Supported sample forms include granules, powders, blocks, sheet materials, and selected liquids or slurries.

Detection Principles

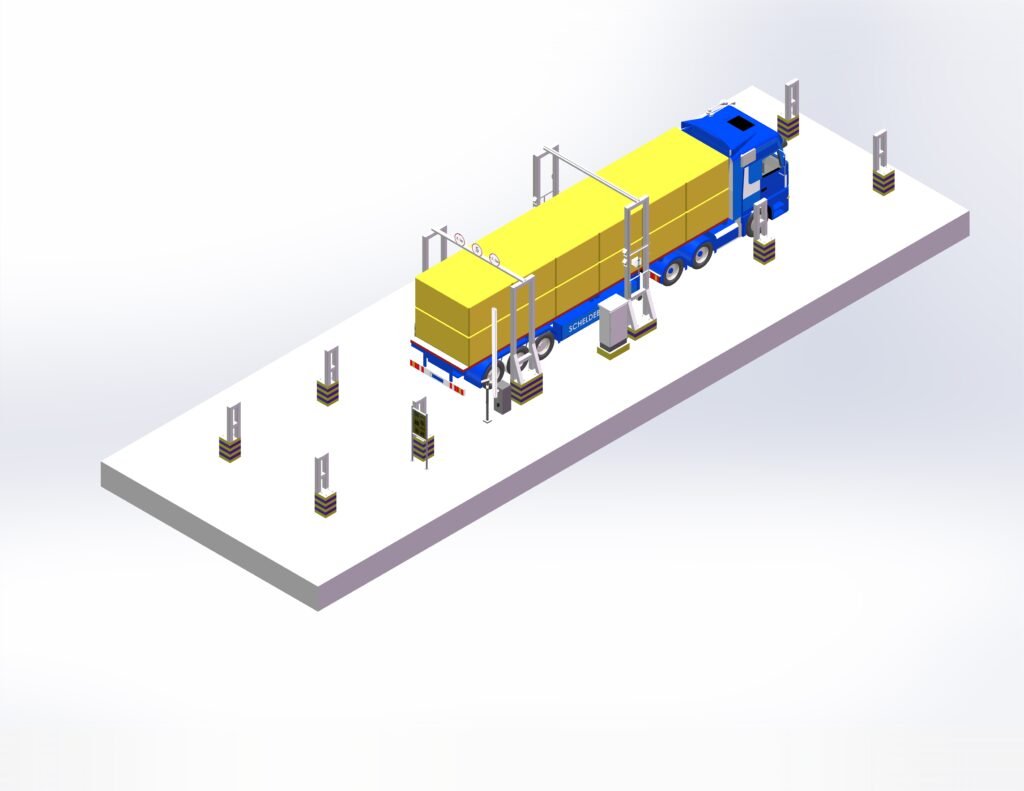

Microwave transmitting and receiving sensors are installed around the vehicle inspection area. As the loaded truck passes through the system, microwave signals travel through selected measurement paths in the recovered-paper load. An application-specific model analyzes the collected responses and calculates a representative truckload-level average moisture result.

Key Advantages

Inspection Before Unloading：Evaluates the loaded vehicle before unloading, supporting faster receiving decisions and earlier identification of abnormal moisture conditions；

Multiple‑Point Measurement：Collects multiple measurements during vehicle passage, providing broader moisture information than a single manual sample；

Automatic Drive‑Through Inspection：Vehicle detection, microwave measurement, result calculation and data recording can be completed automatically during controlled passage；

Receiving‑System Integration：Supports RS232, RS485 and 4–20 mA interfaces for connection with weighing, vehicle‑identification and quality‑management systems

Product Parameters

Parameter	Specification
Measurement Principle	Non-contact microwave through-transmission
Measurement Result	Truckload-level average moisture
Moisture Range	0–80% (application dependent)
Display Resolution	0.1%
Repeatability	≤1.5% under defined conditions
Response Time	<0.5 s
Measurement Rate	Up to 100 readings/s
Sensor Configuration	Dual microwave sensor configuration
Communication	RS232 / RS485
Analog Output	4–20 mA
Power Supply	220 VAC
Sensor Protection	IP67

Optional Configuration

01 — Standard Whole-Truck Configuration

Automatic drive-through measurement system for pre-unloading inspection of loaded recovered-paper trucks.

02 — Multi-Layer Measurement Option

Additional measurement layers can be configured according to truck dimensions, load height and required measurement coverage.

03 — System Integration Option

Vehicle identification, weighing-system and quality-management integration can be configured according to the paper mill’s receiving process.
