MS-LA-590 Rapid Microwave Moisture Analyzer

MS-LA-590 Series Rapid Microwave Moisture Analyzer

Product Introduction

The MS-LA-590 provides rapid, non-contact moisture measurement for prepared samples using multi-spectrum microwave penetration technology. Developed for betel nut, dried fruit and other agricultural products, the integrated system combines microwave sensors, an industrial touch PC, automated sample handling and a mobile cabinet for efficient quality-control testing.

Core Information

Detection Target	Typical Applications
Moisture	Incoming Material Inspection · In-Process Sample Testing · Batch Quality Evaluation · Finished Product Inspection

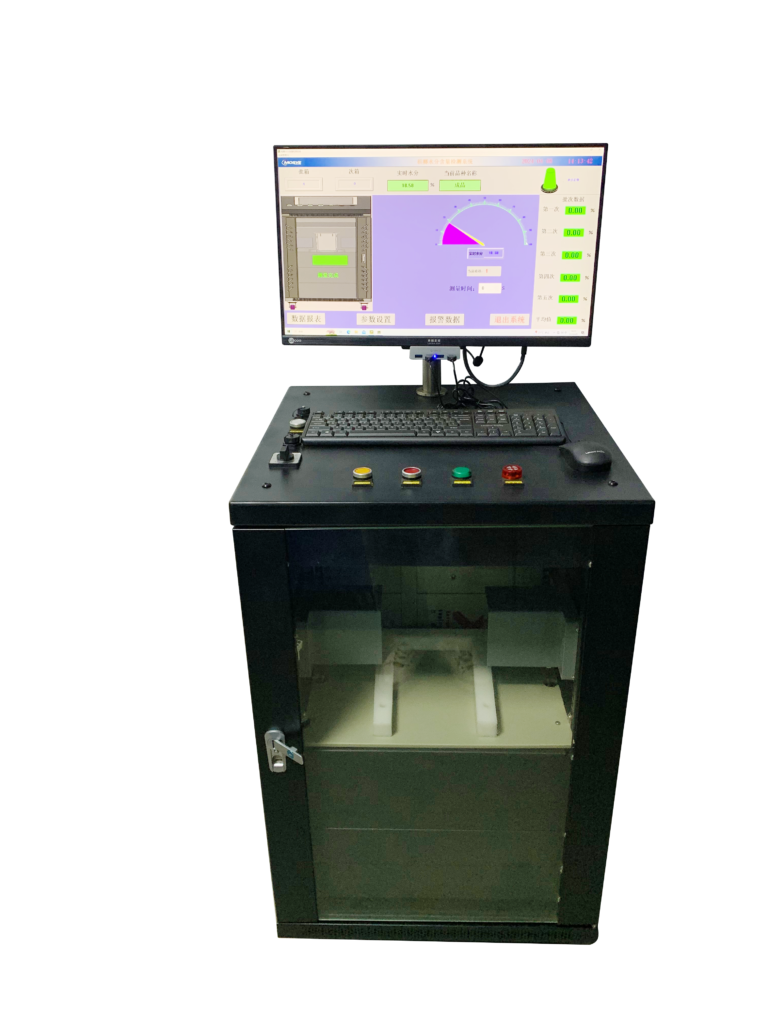

MS-LA-590 Rapid Microwave Moisture Analyzer image

Product Overview

Overview

Rapid Moisture Testing Without Sample Damage
The MS-LA-590 is an integrated microwave analyzer designed for rapid moisture testing of prepared material samples.
Microwave signals penetrate the sample to evaluate internal moisture rather than only its surface condition. Automated sample rotation helps reduce measurement variation caused by uneven moisture distribution.
The system automatically completes sample measurement, result display and data recording, helping quality-control personnel reduce testing time and manual work.

Application Scope

Suitable for selected betel nut, dried fruit, grain, and other agricultural or food products.
Supported sample forms include granules, powders, blocks, sheets, and selected liquids or slurries.
Final suitability depends on the material, sample form, and application calibration.

Detection Principles

Microwave sensors transmit multiple microwave frequencies through the prepared sample. Water molecules absorb part of the electromagnetic energy, changing the microwave response received by the system. An application-specific calibration model analyzes these changes and converts them into a moisture value.

Key Advantages

Microwave Penetration Measurement：Microwave signals penetrate the prepared sample to provide representative moisture information from within the material；

Non‑Destructive Testing：The non‑contact measurement process does not damage the sample, helping reduce material loss during routine quality inspection；

Automatic 360° Measurement：The automatic rotation system measures the sample from multiple angles, reducing variation caused by uneven moisture distribution；

Automated Testing System：Integrates sample handling, measurement, result display and data recording in one system. Optional multi‑channel configurations support different testing requirements

Product Parameters

Parameter	Specification
Measurement Range	0–100%
Accuracy	Up to 0.1%
Display System	15-inch Industrial Touch PC
Output	4–20 mA
Communication	RS232
Power Supply	100–220 VAC
Protection Rating	IP65
Cabinet Size	1000 × 600 × 500 mm
Power Consumption	<200 W
Working Temperature	-30°C to +60°C

Optional Configuration

01 — Standard Automated Configuration

Integrated system for rapid moisture testing of selected prepared samples. Includes microwave sensors, automatic rotation system, industrial touch PC and mobile enclosure.

02 — Multi-Channel Configuration

Optional configuration supporting up to seven measurement channels for different testing points or sample-handling requirements.

03 — Application-Specific Sample Configuration

Customized sample holders, measurement procedures and calibration models are available according to the material form, sample dimensions and testing requirements.
