MS-D-600 Online Density & Concentration Meter

Product Introduction

The MS-D-600 provides continuous density and concentration measurement for selected industrial liquids using ultrasonic vibration technology.
Designed for direct installation in pipelines, tanks and process equipment, it provides real-time process data for monitoring, quality control and automated adjustment.

Core Information

Detection Target	Typical Applications
:Density · Concentration	Process Pipelines · Storage Tanks · Mixing Tanks · Circulation Lines · Process Vessels

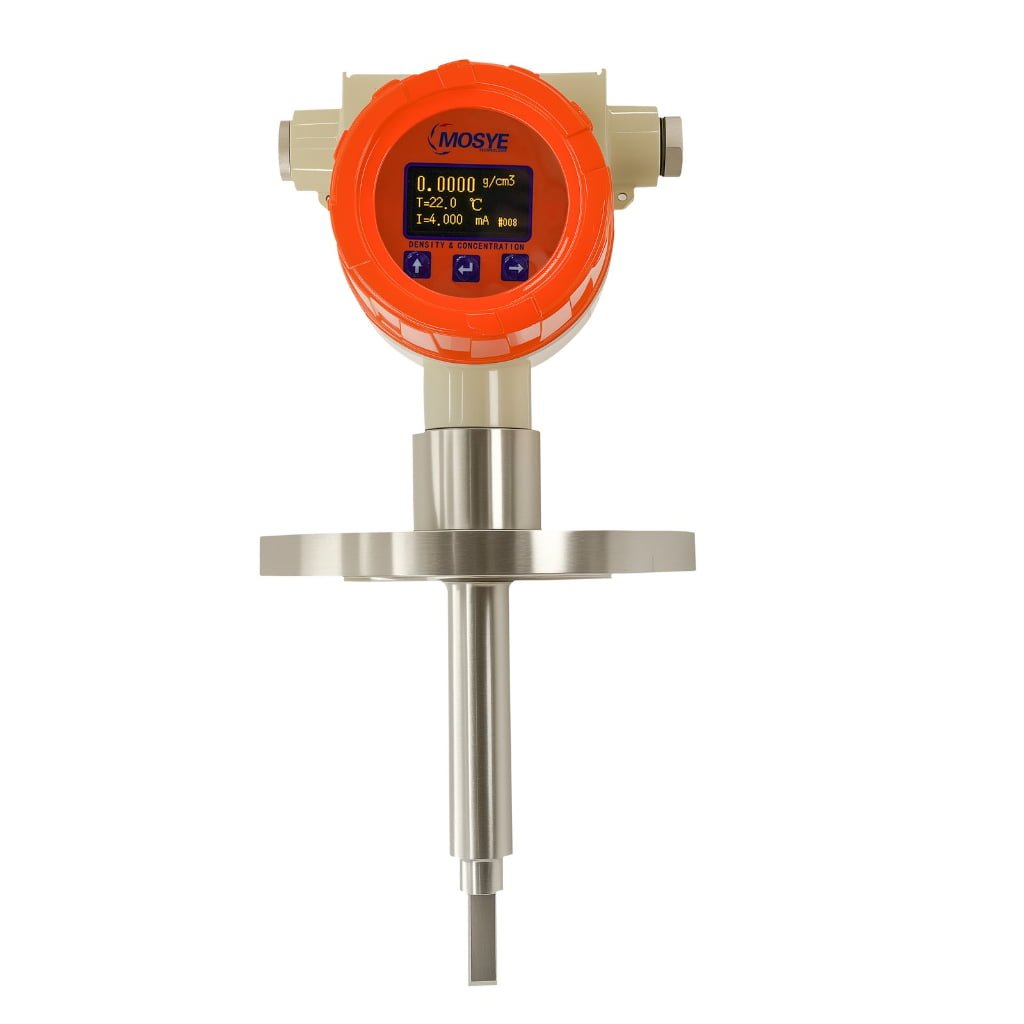

MS-D-600 Online Density & Concentration Meter image

Product Overview

Overview

The MS-D-600 is an online density and concentration meter for selected industrial liquids.
Installed directly in a pipeline, tank or process vessel, the sensor continuously measures liquid density. An application-specific model combines the density and temperature data to calculate the required concentration value.
This provides faster process information and helps reduce dependence on periodic manual sampling.

Application Scope

Suitable for selected:
Petroleum and chemical liquids
Acids, alkalis and solvents
Pharmaceutical and biological liquids
Food and beverage liquids
Battery electrolytes
Environmental process liquids

Detection Principles

An ultrasonic signal excites a metal sensing element at its resonant frequency. The resonant response changes according to the density of the liquid in contact with the sensor. The instrument analyzes this response to determine liquid density. Temperature compensation and an application-specific calibration model are then used to calculate concentration.

Key Advantages

Continuous Process Measurement：Provides continuous density, concentration and temperature information directly from the liquid process, enabling earlier detection of process variation；

High Measurement Resolution：Provides density resolution up to

0001 g/cm³ and supports application‑specific concentration measurement for selected industrial liquids；

Industrial Sensor Design：No moving measurement components. Multiple wetted materials are available for corrosive, abrasive and demanding process media；

Flexible Installation and Integration：Supports flange, clamp or threaded installation, 4–20 mA output and integration with industrial monitoring and control systems

Product Parameters

Parameter	Specification
Measurement Parameters	Density / Concentration
Measurement Range	Density: 0–2 g/cm³; Concentration: 0–100%, application-dependent
Accuracy	Density: ±0.001 g/cm³; Concentration: ±0.2%, application-dependent
Repeatability	Density: ±0.0001 g/cm³; Concentration: ±0.1%, application-dependent
Process Temperature	−25°C to +120°C standard; up to +150°C customized
Process Pressure	Up to 0.4 MPa standard; up to 2 MPa customized
Standard-Insertion Depth	150 mm; other lengths available
Analog Output	4–20 mA, four-wire
Power Supply	24 VDC
Protection Rating	IP67
Ambient Temperature	−25°C to +85°C

Optional Configuration

01 — Standard Configuration：Standard sensor for continuous density and concentration measurement in pipelines, tanks and process equipment. Supports flange, clamp or threaded installation.

02 — High-Temperature and High-Pressure Option：Customized configuration for process temperatures up to +150°C and pressures up to 2 MPa. Insertion depth and wetted materials are selected according to the process conditions.

03 — Explosion-Protected Configuration：Available for suitable hazardous-area applications. Final enclosure, electrical connection and explosion-protection marking are confirmed according to the supplied certified configuration.
