MS-590L-1 Automatic Single-Bale Moisture Measurement System

MS-590L-1 Series Automatic Single-Bale Waste Paper Moisture Measurement System

Product Introduction

The MS-590L-1 provides automatic, non-contact moisture measurement for individual recovered paper bales after unloading.
Using microwave through-transmission technology, the system measures selected bales without opening or damaging them, supporting bale-level quality inspection, supplier evaluation and moisture-deduction management.

Core Information

Detection Target	Typical Applications
Moisture	Random Bale Inspection · Moisture Verification · Supplier Quality Evaluation · Receiving Quality Control

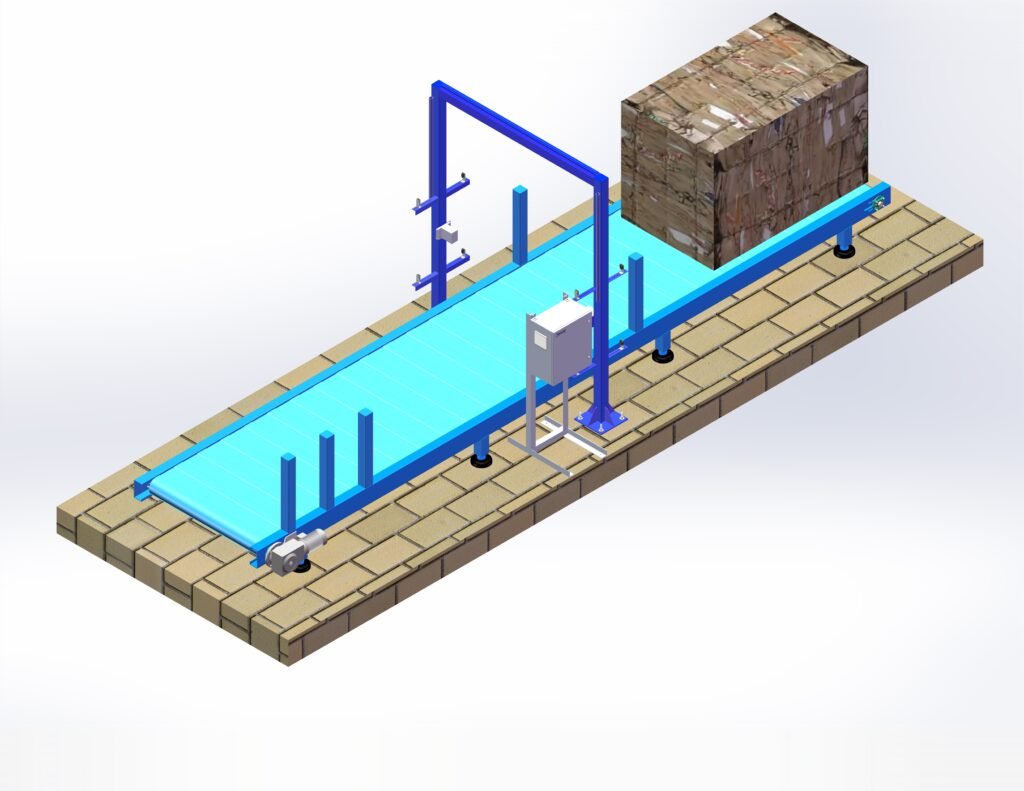

MS-590L-1 Automatic Single-Bale Moisture Measurement System image

Product Overview

Overview

The MS-590L-1 is designed for moisture inspection of selected recovered paper bales after truck unloading.

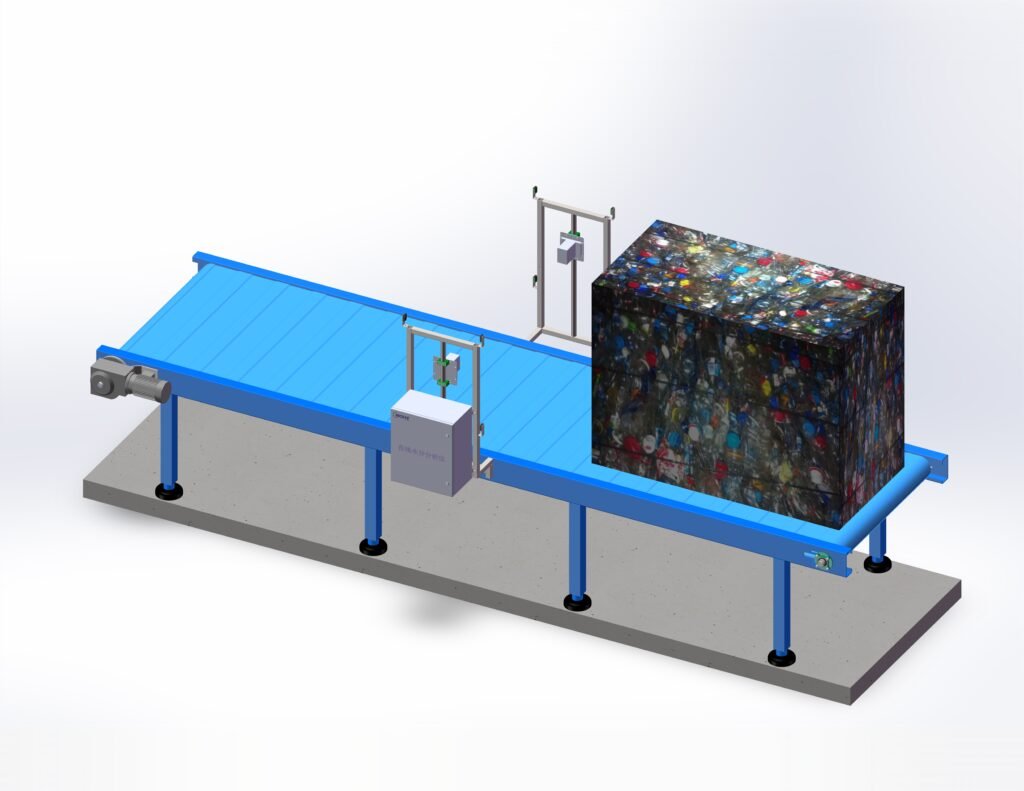

Each selected bale passes through the microwave measurement area, where the system automatically collects moisture data and calculates a bale-level result.
Measurement results can be recorded and transmitted to the mill’s receiving or quality-management system, helping reduce manual inspection and improve bale-level moisture records.
The final sampling, moisture-deduction and settlement method remains subject to the paper mill’s inspection rules and commercial agreement.

Application Scope

Designed for selected:
Recovered paper bales
Waste paper bales
Compressed paper materials

Detection Principles

Microwave transmitting and receiving antennas are positioned around the bale-measurement area. Microwave signals pass through the selected bale. Changes in moisture affect the received microwave response, and an application-specific calibration model converts the measured response into a single-bale moisture result.

Key Advantages

Non‑Contact Bale Measurement：Measures moisture through the selected bale without opening or damaging it, reducing manual bale handling during routine inspection；

Bale‑Level Moisture Results：Provides an individual moisture result for each inspected bale, supporting supplier comparison and identification of abnormal moisture conditions；

Automatic Measurement and Recording：Measurement can be triggered automatically as the bale enters the inspection area. Results can be displayed, stored and uploaded to the plant system；

Receiving‑System Integration：Supports 4–20 mA, RS485 and RS232 interfaces for connection with quality‑management, weighing or settlement systems

Product Parameters

Parameter	Specification
Measurement Principle	Non-contact microwave through-transmission
Measurement Result	Single-bale moisture content
Host Protection	IP67
Antenna Protection	IP65
Output	4–20 mA
Communication	RS485 / RS232
Power Supply (Host)	100–220 VAC
Power Supply (Antenna)	220 VAC
Host Ambient Temperature	-20°C to +85°C
Antenna Operating Temperature	–20°C to +60°C

Optional Configuration

01 — Standard Single-Bale Configuration

Automatic microwave measurement system for individual recovered paper bales, including the measurement structure, microwave antennas and data-processing unit.

02 — System Integration Option

Data interfaces and software integration can be configured for connection with the mill’s quality-management, weighing or settlement system.

03 — Customized Bale-Handling Option

The measurement structure and bale-handling arrangement can be adapted according to bale dimensions, conveyor layout, inspection throughput and available installation space.
