MS-580 Online NIR Moisture Analyzer

MS-580 Series Online NIR Moisture Analyzer

Product Introduction

The MS-580 provides continuous, non-contact surface moisture measurement using multi-spectrum LED near-infrared technology. Designed for conveyors, hoppers, silos and selected process equipment, it provides real-time moisture data for production monitoring and quality control.

Core Information

Detection Target	Typical Applications
Moisture	Conveyor Belts · Material Transfer Points · Hoppers · Silos · Selected Pipelines · Enclosed Process Equipment

Product Overview

Overview

The MS-580 uses four groups of near-infrared LED wavelengths to measure reflected spectral information from the material surface.
An application-specific calibration model converts the optical response into continuous moisture values, helping reduce dependence on periodic laboratory sampling.
The integrated analyzer supports local display, parameter setting and process-data transmission.

Application Scope

Suitable for selected:
Detergent powders
Tobacco materials
Paper, board and wood products
Grain and starch materials
Sinter and industrial powders

Detection Principles

Near-infrared LED light illuminates the material surface. Moisture absorbs selected wavelengths, and the reflected spectral response is collected by the optical detector. An application-specific mathematical model converts the measured response into a continuous moisture value. The MS-580 measures surface or near-surface moisture; it does not measure the complete internal moisture distribution of thick material layers.

Key Advantages

Non-Contact Measurement： Measures moisture without direct optical contact, reducing sensor wear and supporting continuous measurement of moving materials.

Multi-Spectrum LED Technology：Uses four groups of NIR LED wavelengths without rotating filters or moving optical components, reducing mechanical wear and routine maintenance.

Stable Industrial Measurement：Signal processing and application-specific calibration help reduce the influence of material colour, ambient light and surface variation.

Flexible Installation and Integration：Supports standard and insertion-mounted configurations, dual analog outputs, RS232/RS485 communication, external control and air purging.

Product Parameters

Parameter	Specification
Measurement Range	0–90%*
Accuracy	Up to 0.1%*
Light Source	Multi-spectrum LED NIR
Wavelength Range	940–1550 nm
Installation	Non-contact / insertion
Output	4–20 mA
Communication	RS232 / RS485
Power Supply	24 VDC
Housing Material	Industrial aluminum
Protection Rating	IP65
Sensor Operating Temperature	−20°C to +60°C
Ambient Temperature	−20°C to +85°C
Measurement Type	Non-contact surface or near-surface measurement
Power Consumption	50 VA

Optional Configuration

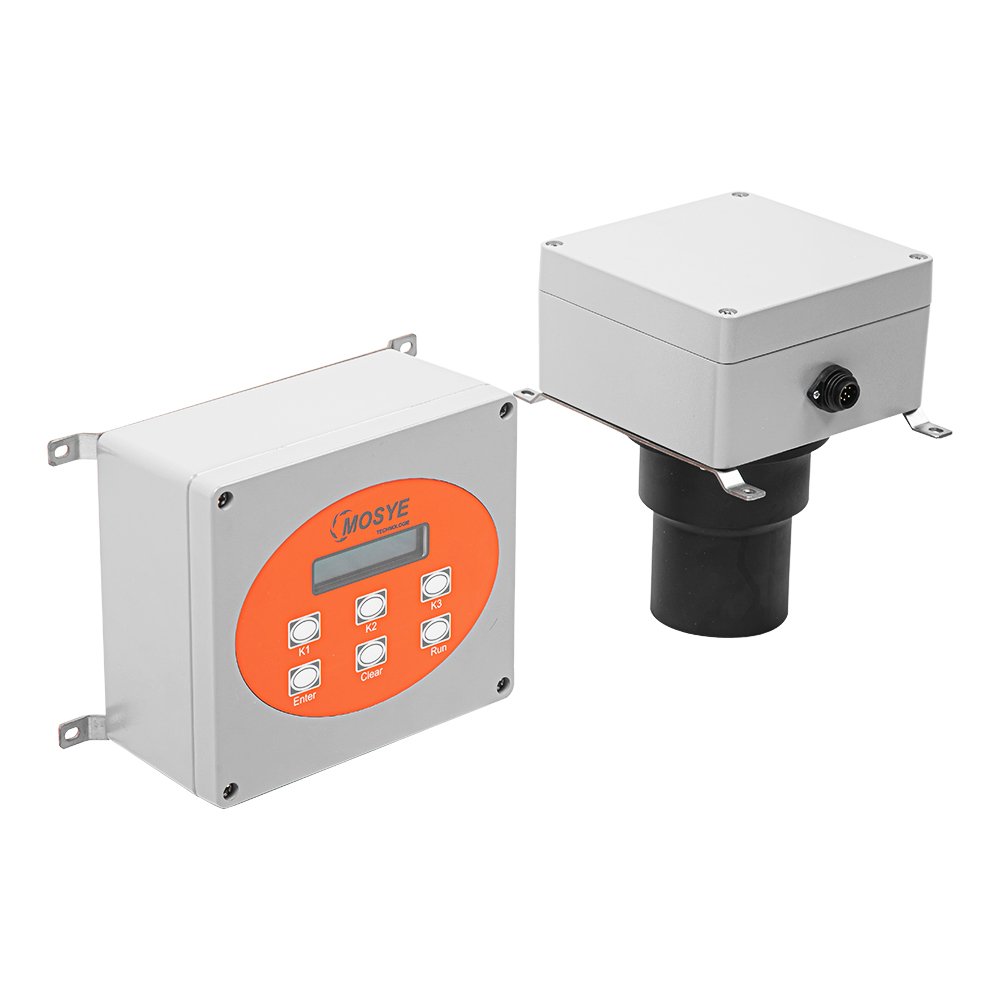

MS-580-S — Standard Non-Contact Configuration: Designed for installation above open material surfaces. Typical installations include: Conveyor belts 、Paper and board lines 、Material transfer points 、Open production lines . The sensor is installed at a controlled distance above the material surface.

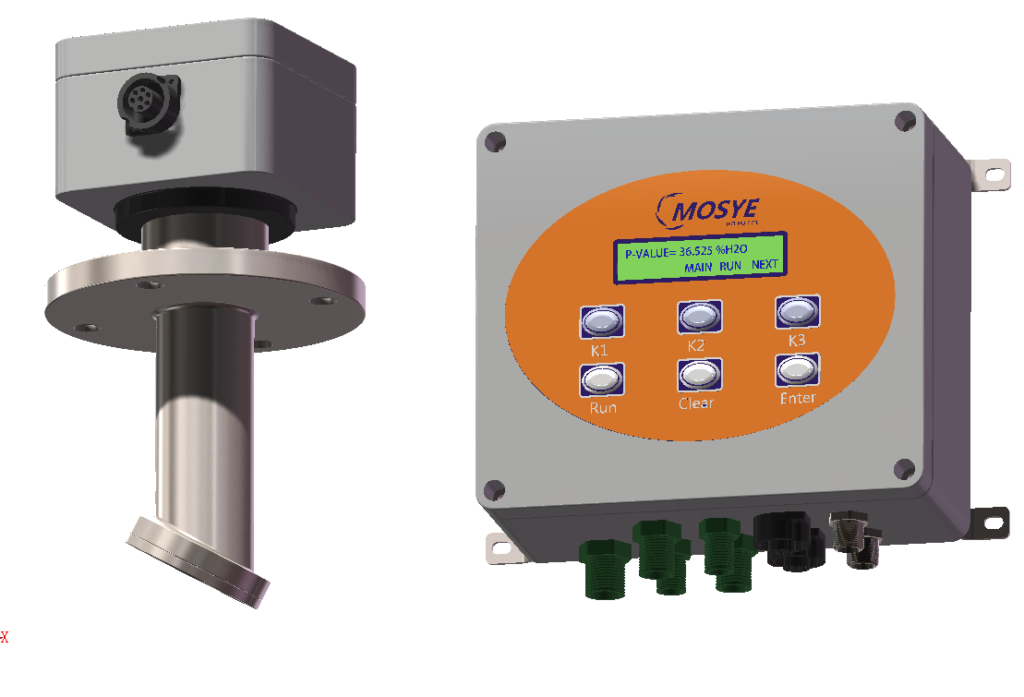

MS-580-M — Insertion-Mounted Configuration： Designed for selected hoppers, silos, pipelines and enclosed process equipment. The optical probe extends into the material area while moisture is measured optically at the sensor window. Final suitability depends on material visibility, buildup, dust and cleaning requirements.

Application Engineering

Evaluate the MS-204 for Your Process

Share your material characteristics, moisture range, process conditions and installation requirements with MOSYE application engineers. We will evaluate the appropriate probe, process connection and measurement configuration for your application.
