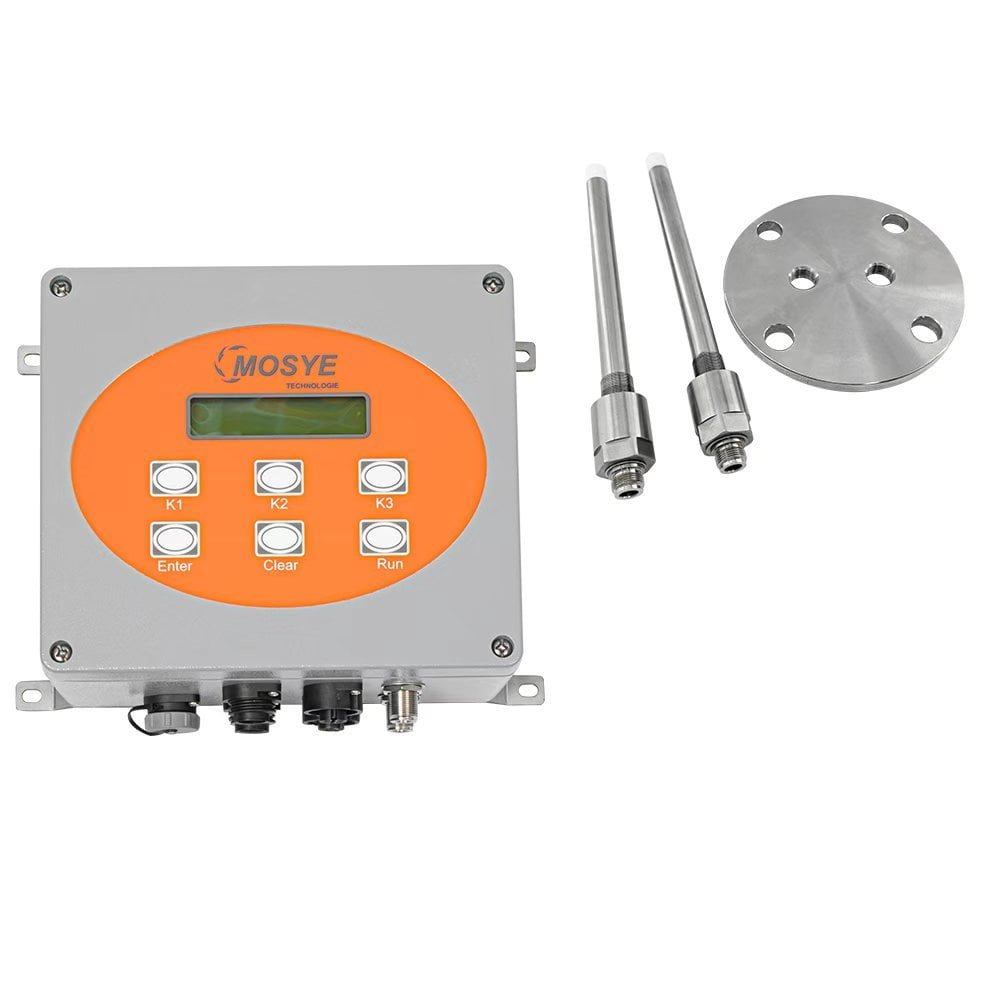

MS-570 Online Microwave Brix Analyzer

MS-570 Series Online Microwave Brix Analyzer

Product Introduction

The MS-570 provides continuous online measurement of °Brix and sugar concentration using microwave technology. Developed for sugar-production processes, it supports insertion-type installation in open pans, pipelines, tanks and mixing equipment, providing real-time concentration data for process monitoring and control. Preset sugar-process parameters help simplify initial configuration. Final calibration and commissioning are completed according to the process medium and operating conditions.

Core Information

Detection Target	Typical Applications
°Brix / Sugar Concentration	Open Pans · Process Pipelines · Syrup Transfer Lines · Storage Tanks · Mixing Equipment

Product Overview

Overview

The MS-570 is a microwave analyzer developed for continuous °Brix measurement in sugar-production processes. Installed directly in process equipment, it provides real-time concentration data for evaporation, syrup preparation, transfer and mixing operations, helping reduce dependence on periodic laboratory sampling. Typical installation locations include open pans, pipelines, tanks and mixing equipment.

Application Scope

Suitable for selected sugar-process media, including:
Sugar juice
Concentrated juice
Syrup
Sugar solutions
Mixing and blending liquids

Detection Principles

The MS-570 transmits microwave signals into the process medium. Changes in sugar concentration affect microwave propagation and energy attenuation. An application-specific calibration model converts the measured microwave response into a continuous °Brix value.

Key Advantages

Optimized for Sugar Processes Preset sugar‑process parameters help simplify initial setup. Final calibration is completed using the actual process medium and reference method.

Wide Measurement Range Supports continuous measurement from 0–100 °Brix, with accuracy up to ±0.5 °Brix depending on the application.

High‑Temperature Measurement Insertion‑type configurations support sugar‑process temperatures up to +180°C, with customizable sensor length, material, direction and angle.

Reliable Process Integration Features no moving measurement components and supports 4–20 mA output, RS232 communication, optional automatic cleaning and configuration‑dependent networking.

Product Parameters

Parameter	Specification
Range	0–100 Brix
Accuracy	Up to 0.05%*
Process Temperature	Up to 180°C
Probe Length	180 mm standard, customizable
Output	4–20 mA / 1–5V
Communication	RS232 / RS485
Power Supply	100–220 VAC
Protection	IP67
Sensor Material	Stainless steel / optional materials
Networking	Up to 16 instruments, configuration-dependent
Automatic Cleaning	Optional
Microwave Antennas	Two antennas, 180 mm standard length
Power Consumption	50 VA

Optional Configuration

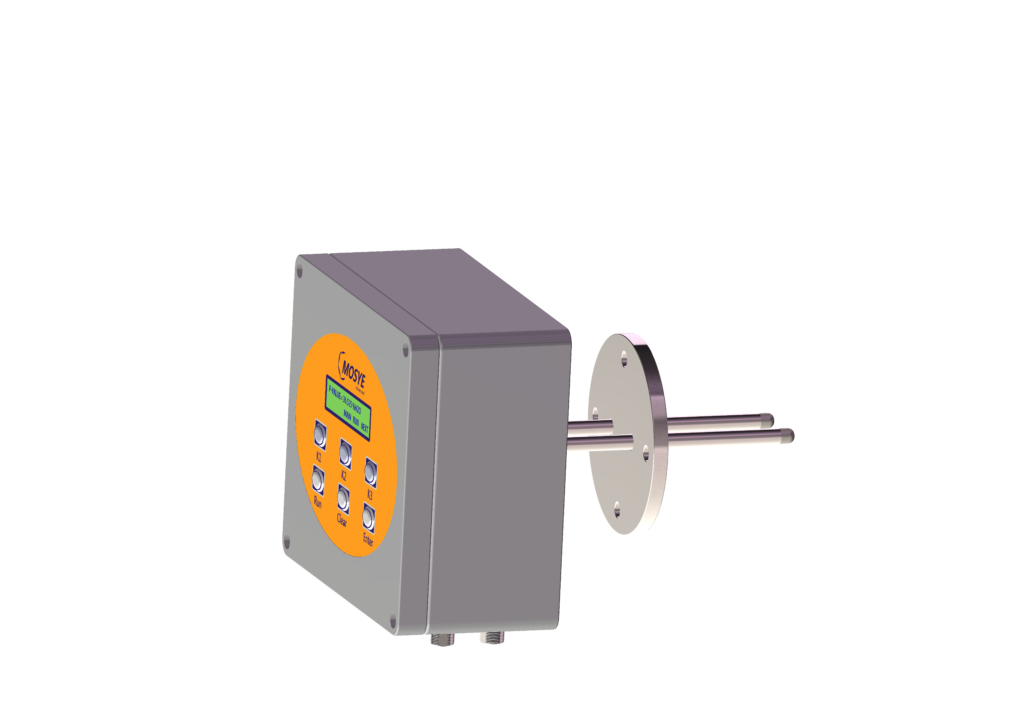

MS-570 — Standard Configuration: Insertion-type configuration for open pans, pipelines, tanks and mixing equipment. Supports flange or threaded installation with two standard 180 mm microwave antennas.

High-Temperature and Customized Options: Available for process temperatures up to +180°C. Sensor length, material, insertion direction and automatic cleaning can be customized. Final configuration depends on the process medium, temperature, equipment structure and installation requirements.

Application Engineering

Evaluate the MS-204 for Your Process

Share your material characteristics, moisture range, process conditions and installation requirements with MOSYE application engineers. We will evaluate the appropriate probe, process connection and measurement configuration for your application.

Request Application Evaluation
