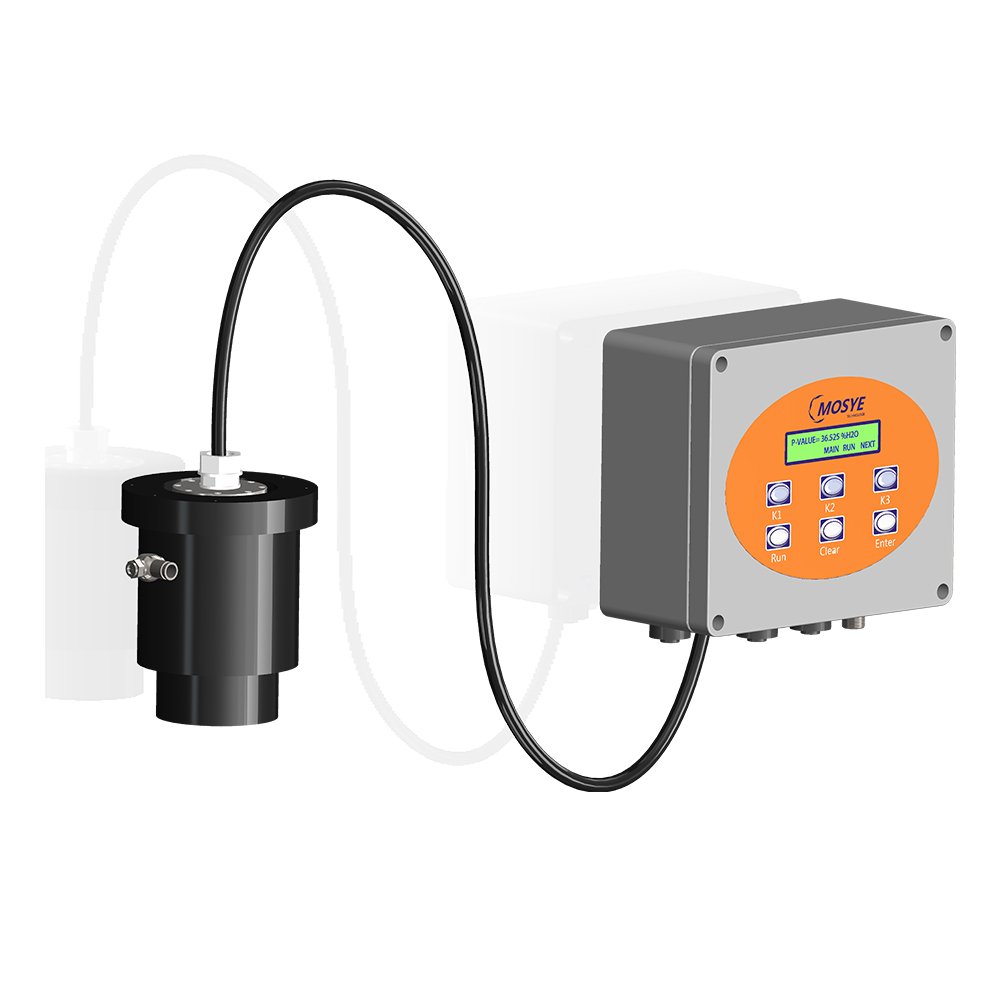

MS-540 Online Multi-Component NIR Analyzer

MS-540 Series Online Multi-Component NIR Analyzer

Product Introduction

The MS-540 provides continuous, non-contact analysis of multiple material components using array-based near-infrared technology.
Configured for 2–8 selected components, it provides real-time composition data for process monitoring and quality control while reducing dependence on periodic laboratory sampling.

Core Information

Detection Target	Typical Applications
Multi-Component Composition	Conveyor Belts · Rollers · Material Transfer Points · Selected Process Equipment

MS-540 Online Multi-Component NIR Analyzer

Product Overview

Overview

The MS-540 is an online NIR analyzer for continuous measurement of selected material components during industrial production.
Its array LED light source illuminates the material surface, and the reflected spectral response is analyzed using independent application-specific calibration models.
The system integrates the LED array, optical components, spectral analysis unit and signal-processing unit into one industrial measurement platform.

Application Scope

The MS-540 can be configured for 2–8 selected components, such as:
Moisture
Nicotine
Total sugar
Potassium
Propylene glycol
Other application-specific components

Detection Principles

Material components absorb near-infrared energy differently across selected wavelengths, producing characteristic spectral responses. The MS-540 analyzes the reflected spectral information and uses an independent calibration model to calculate the value of each selected component.

Key Advantages

Multi‑Component Measurement Measures 2–8 selected components using one platform. Each component uses an independent application‑specific calibration model.

Non‑Contact Online Analysis Measures reflected NIR signals without direct contact, reducing sensor wear and supporting continuous production‑line monitoring.

Stable Industrial Measurement Signal processing and application‑specific configuration help reduce the influence of material colour, surface variation and ambient conditions.

Flexible Process Integration Supports 0/4–20 mA output, RS232 communication and integration with PLC/DCS systems on conveyors, rollers and selected process equipment.

Product Parameters

Parameter	Specification
Technology	Full-spectrum NIR (Array LED
Measurement Parameter	Multi-component composition
Components	2–8 components
Accuracy	Up to 0.05%
Measurement Temperature	0–130°C
Installation	Conveyor / Roller / Pipeline
Output	0/4–20 mA
Communication	RS232
Power Supply	100–240 VAC
Power Consumption	50 VA
Display	2×24 Character LCD
Ambient Temperature	-20°C to +40°C
Storage Temperature	-30°C to +80°C

Optional Configuration

Application-Specific Multi-Component Configuration:Configured for 2–8 selected components according to the material, measurement ranges and available reference data. Installation and output configuration are selected according to the production process. Final measurable components depend on application evaluation and calibration.
