MS-480 Online Refractive Index & Concentration Analyzer

Direct In-Process Moisture Measurement

The MS-480 provides continuous optical measurement of refractive index and calculates concentration, °Brix or other validated process values for selected industrial liquids and process media.

Core Information

Detection Target	Typical Applications
Refractive Index · Concentration · °Brix	Process Pipelines · Mixing Systems · Evaporation Systems · Recovery Lines · Concentration-Control Points

$MS-480 Online Refractive Index & Concentration Analyzer$

Product Overview

Continuous Concentration Measurement Without Sampling Delay The MS-480 continuously measures refractive index at the interface between the sensor and process liquid. Temperature compensation and an application-specific model convert the optical measurement into concentration, °Brix or other validated process values, helping reduce dependence on periodic laboratory sampling. Typical applications include pipelines, mixing systems, evaporation processes, recovery systems and concentration-control points.

Suitable Process Media

Suitable for selected: Sugar, syrup and beverage solutions Acids and chemical solutions Organic solvents and recovery liquids Cutting, grinding and cleaning fluids Antifreeze and other process liquids Final suitability depends on medium composition, concentration range, temperature and process conditions.

Measurement Principle

The sensor uses an LED light source, sapphire optical surface and optical receiver to measure refractive behaviour at the liquid–sensor interface. The analyzer combines the measured refractive index with temperature compensation and an application-specific calibration model to calculate the required concentration or °Brix value.

Key Advantages

1、 Continuous Process Measurement Provides continuous concentration

data directly from the process, enabling faster feedback and reducing dependence on routine manual sampling. 2、High‑Resolution Measurement Provides concentration accuracy up to ±0.05%, concentration resolution of 0.01% and refractive‑index resolution of 0.00001 . 3、Reliable Optical Sensor The LED light source, sapphire optical surface and movement‑free sensor design support stable operation with low routine maintenance.

4、 Flexible Integration Supports 4–20 mA output,

RS485 Modbus communication and multiple corrosion‑resistant sensor materials for industrial process integration.

Technical Specifications

Parameter	Specification
Measurement Technology	Optical refractive measurement
Measurement Parameters	Concentration / °Brix / Refractive index
Measurement Range	Brix: 0–100%; nD: 1.32000–1.57000
Accuracy	Up to ±0.05%, application-dependent
Resolution	Concentration: 0.01%; Refractive index: 0.00001
Temperature Range	0°C to +100°C
Temperature Resolution	0.01°C
Output and Communication	4–20 mA / RS485 Modbus
Power Supply	24 VDC
Protection Rating	IP67
Sensor Materials	316L / Hastelloy C-276 / TC4 titanium
Explosion Protection	Ex ia IIC T6 Ga, optional certified configuration

Available Configurations

Configuration1

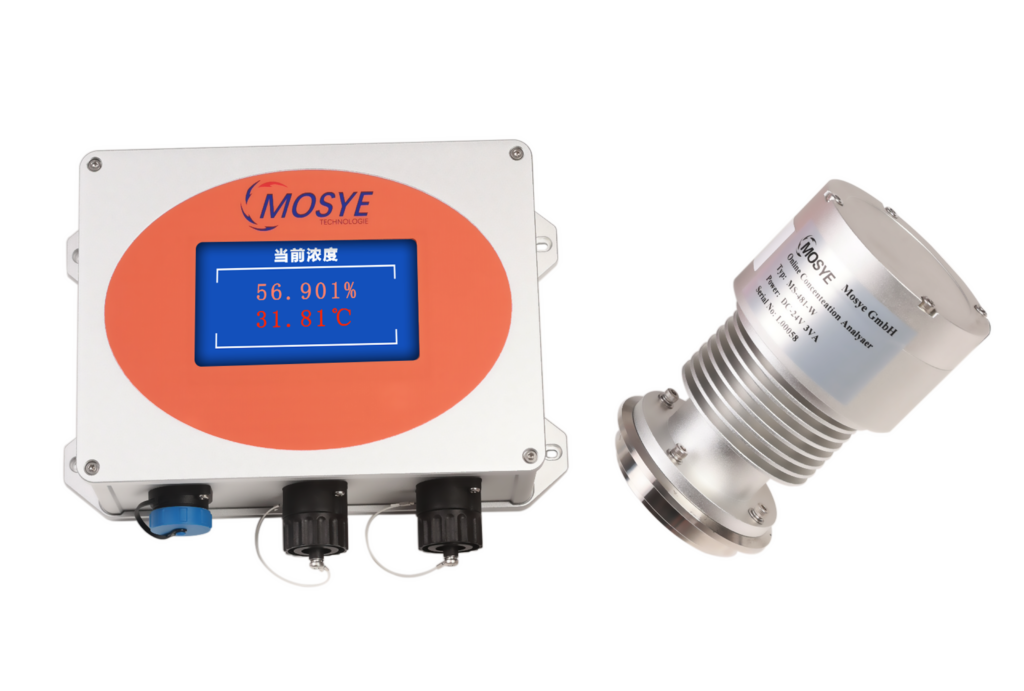

MS-480 — Standard Configuration: Non-explosion-protected configuration for general industrial liquid concentration measurement. Sensor material is selected according to the process medium.

Configuration2

Explosion-Protected Configuration: Available for suitable hazardous-area applications. The final explosion marking and installation requirements are subject to the supplied certificate. Final configuration depends on the medium composition, temperature, corrosion conditions and hazardous-area requirements.
