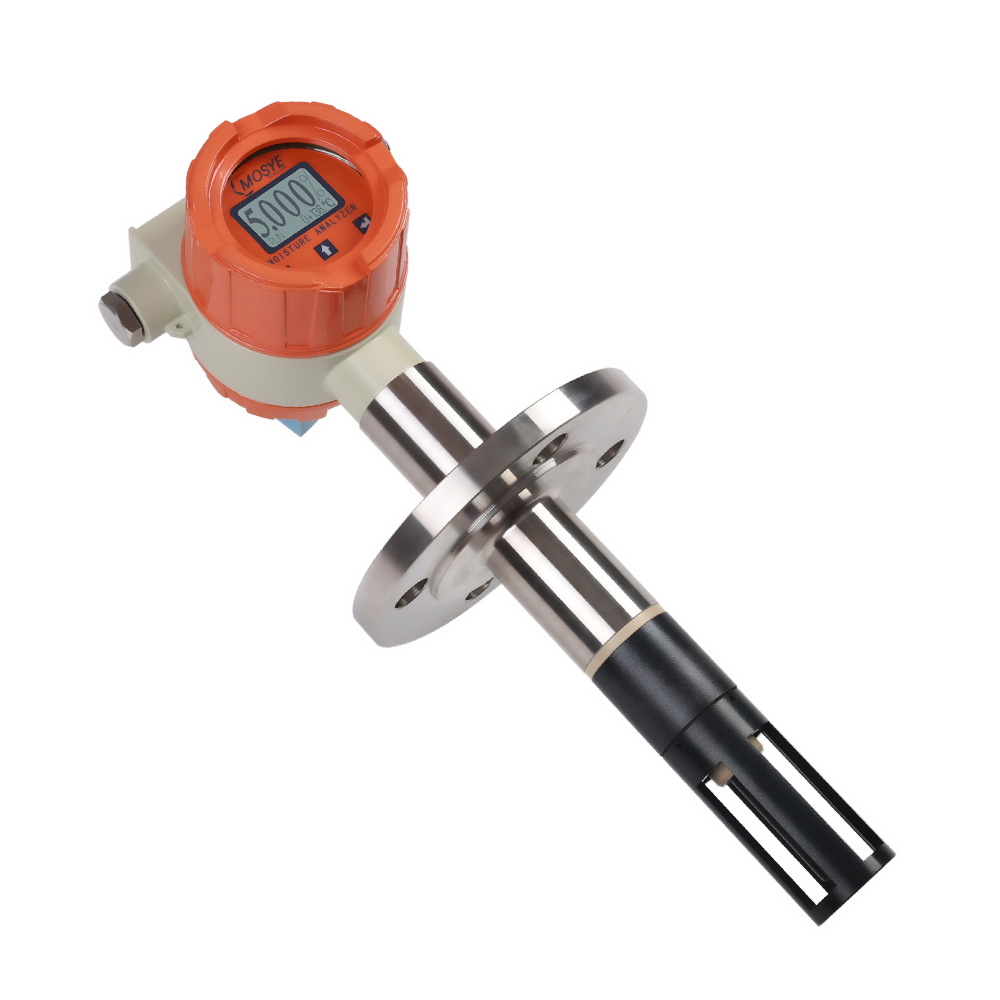

MS-310 Online Microwave Moisture Analyzer

MS-310 Series Online Microwave Moisture Analyzer

Product Introduction

The MS-310 provides continuous insertion-type microwave moisture measurement for selected oils, organic liquids and industrial slurries. Designed for direct installation in pipelines, tanks and process equipment, the analyzer provides real-time moisture data for liquid process monitoring and control.

Core Information

Detection Target	Typical Applications
Moisture / Water Content	Process Pipelines · Tank Circulation Lines · Transfer Lines · Storage Tanks · Process Vessels

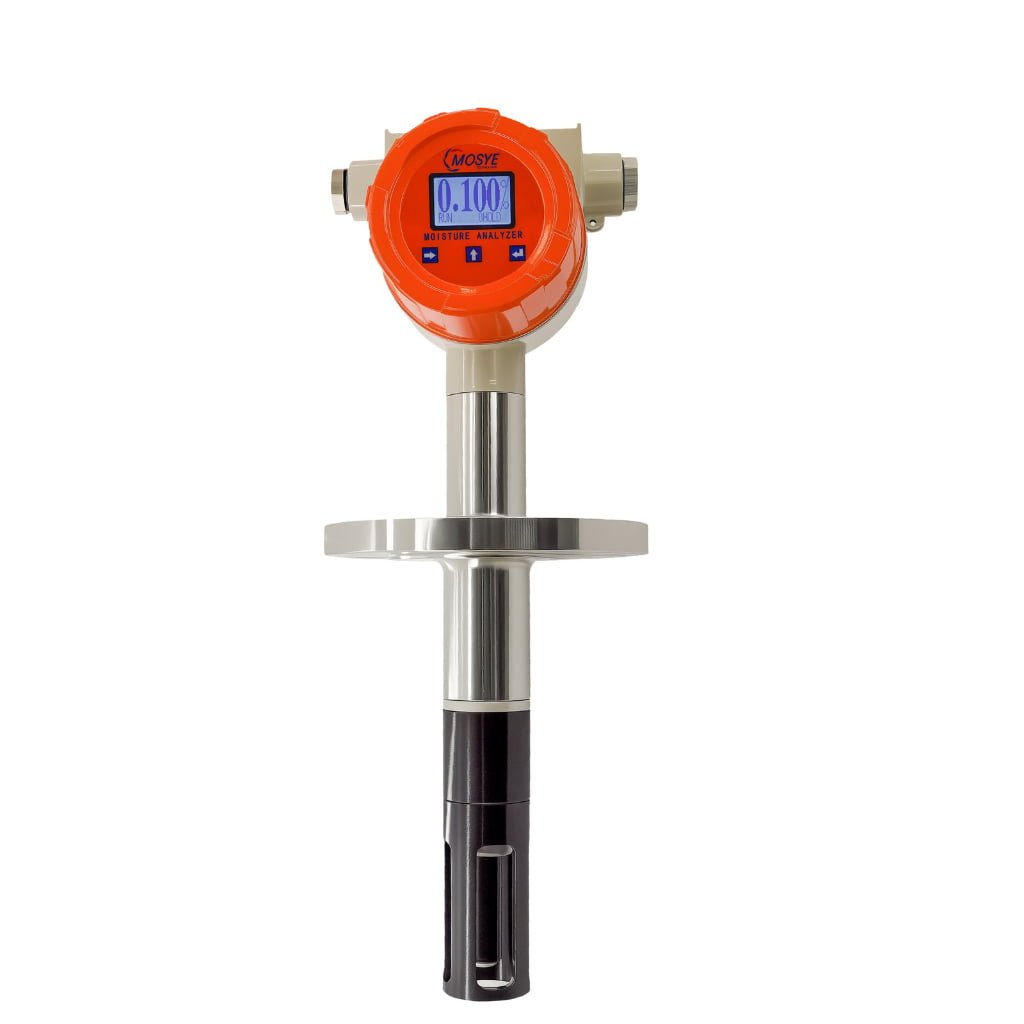

MS-310 Online Microwave Moisture Analyzer

Product Overview

Overview

The MS-310 is an insertion-type microwave moisture analyzer designed for continuous water-content measurement in selected liquids and industrial slurries.
Installed directly in the process medium, it provides real-time data to plant monitoring and control systems, helping operators identify moisture variation earlier and reduce dependence on periodic laboratory sampling.
Typical installation locations include pipelines, tank circulation lines, transfer lines and process equipment.
Transfer lines
The analyzer supports different measurement configurations according to:
Moisture range
Liquid characteristics
Temperature
Pressure
Installation conditions

Application Scope

The MS-310 is designed for moisture measurement in selected liquids and industrial slurries, including:
Crude oil
Fuel, lubricating and insulating oils
Organic solvents
Chemical process liquids
Selected industrial slurries

Detection Principles

The MS-310 transmits microwave signals through the measured medium. Changes in water content affect microwave energy, frequency and phase response. An application-specific calibration model, supported by temperature compensation, converts these signal changes into continuous moisture values.

Key Advantages

Wide Measurement Range：Configurable for trace moisture, low‑moisture liquids and high water‑content mixtures. Available ranges extend from selected low‑moisture applications up to 0–100%, depending on the process medium.

High‑Sensitivity Measurement：Selected configurations provide resolution down to

001% (10 ppm). Actual performance depends on liquid composition, moisture range, process stability and application calibration.

Continuous Process Monitoring：Provides real‑time moisture data directly from the liquid process, enabling earlier detection of variation, faster process adjustment and reduced dependence on routine sampling.

Flexible Process Installation and Integration：Supports flange or 1/2 NPT threaded installation, customizable insertion depths, 4–20 mA output and RS485 communication. High‑temperature and high‑pressure configurations are available.

Product Parameters

Parameter	Specification
Measurement Range	0–0.5% / 0–100% configurable
Resolution	Up to 0.1 PPM*
Accuracy	Application dependent
Temperature Compensation	Available
Material Temperature	0°C to +70°C standard
Sensor Temperature Rating	Up to +80°C standard; +90°C / +130°C optional
Pressure	1.6 MPa standard
High Pressure Option	4 MPa
Output	4–20mA
Communication	RS485
Power Supply	24VDC
Installation	Flange mounting
Explosion Protection	Ex db IIC T6 Gb, optional certified configuration
Sensor Material	Chrome-plated copper; alternative materials optional
Standard Insertion Depth	245 mm, customizable

Optional Configuration

0 MPa. Sensor materials and insertion depth can be customized. Final configuration depends on the medium composition, temperature, pressure and installation conditions.

Application Engineering

Evaluate the MS-204 for Your Process

Share your material characteristics, moisture range, process conditions and installation requirements with MOSYE application engineers. We will evaluate the appropriate probe, process connection and measurement configuration for your application.
