MS-210 Online Microwave Moisture Analyzer

MS-210 Series Online Microwave Moisture Analyzer

Product Introduction

The MS-210 provides continuous contact-type microwave moisture measurement for selected powders, granules and bulk materials. Designed for installation in hoppers, bins, chutes and material-handling equipment, it provides real-time moisture data for industrial process monitoring and control.

Core Information

Detection Target	Typical Applications
Moisture	Process Pipelines · Storage Tanks · Mixing Vessels · Silo, Hoppers · Chutes · Industrial Process Equipment

MS-210 Online Microwave Moisture Analyzer

Product Overview

Overview

Continuous Moisture Measurement Inside Industrial Processes： Moisture variation can influence product quality, energy consumption and production stability in many industrial processes. The MS-210 is an integrated microwave moisture analyzer designed for continuous measurement of bulk materials. Using microwave energy attenuation technology, the analyzer measures moisture content directly from the material and provides real-time moisture data for process monitoring and control.

Application Scope

Suitable for selected powders, granules and bulk solids, including:
Grain and feed
Sand and aggregates
Industrial powders
High-moisture mixtures

Detection Principles

The MS-210 transmits microwave energy into the measured material. Changes in moisture affect microwave energy attenuation, and an application-specific calibration model converts the measured response into continuous moisture values.

Key Advantages

Direct Contact Measurement：The ceramic sensing surface measures moisture directly against the material flow. Typical installation points include hopper outlets, bin walls, chutes, screw conveyors and discharge points.

Continuous Process Feedback：Continuous moisture data enables earlier detection of variation, faster process adjustment, reduced routine sampling and improved production visibility.

Wear-Resistant Industrial Design：The SS304 housing and alumina ceramic sensing surface provide wear resistance, reliable industrial operation and low maintenance without moving measurement components.

Flexible Installation and Integration：Supports fixed-flange or flush mounting, 4–20 mA and 1–5 V outputs, RS485 communication and connection with PLC/DCS systems.

Product Parameters

Parameter	Specification
Measurement Range	0–100%
Accuracy	0.1–1%
Repeatability	0.2%*
Measurement Depth	80–100 mm*
Output	4–20 mA / 1–5 V
Communication	RS485
Power Supply	12–24 VDC
Installation	Fixed flange / Flush mounting
Sensing Surface	Alumina ceramic
High-Temperature Configuration	Up to +120°C

Optional Configuration

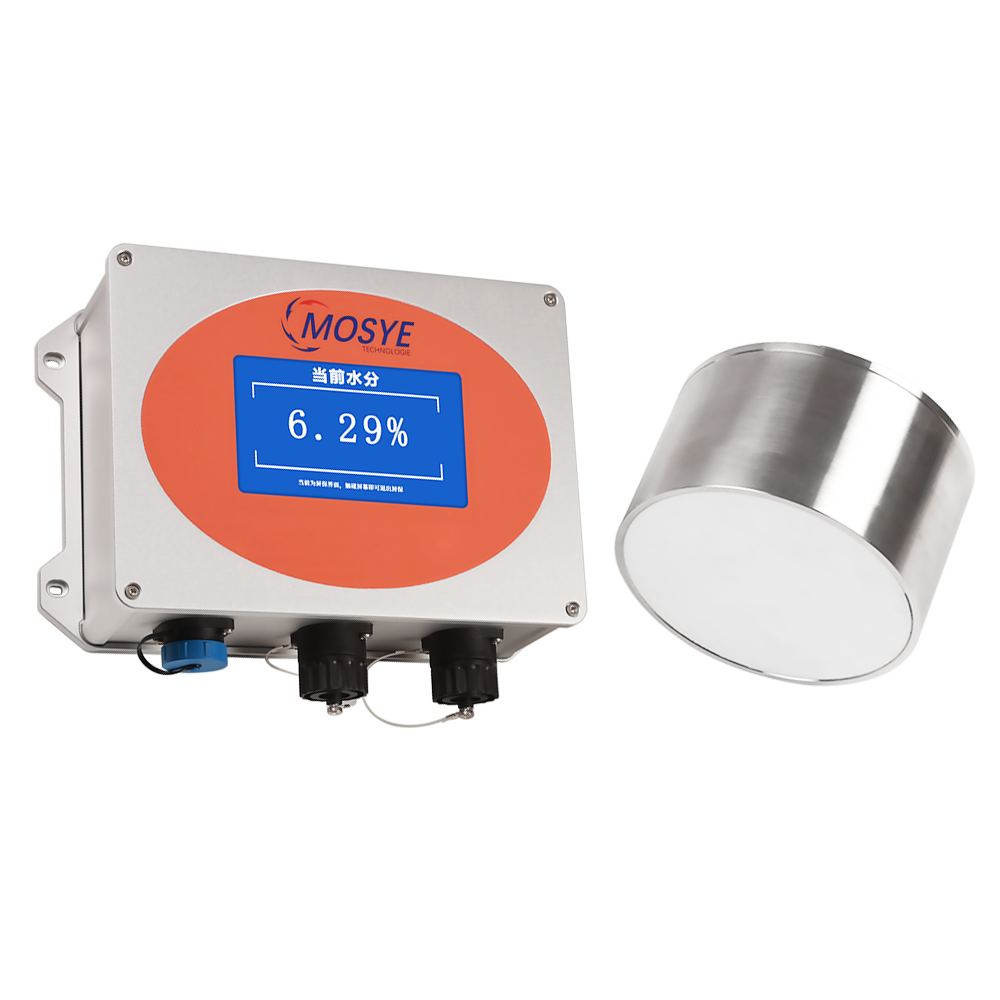

MS-210 — Standard Configuration： Integrated disc-shaped sensor for standard-temperature applications. Sensor dimensions: Ø139 × 45 mm.

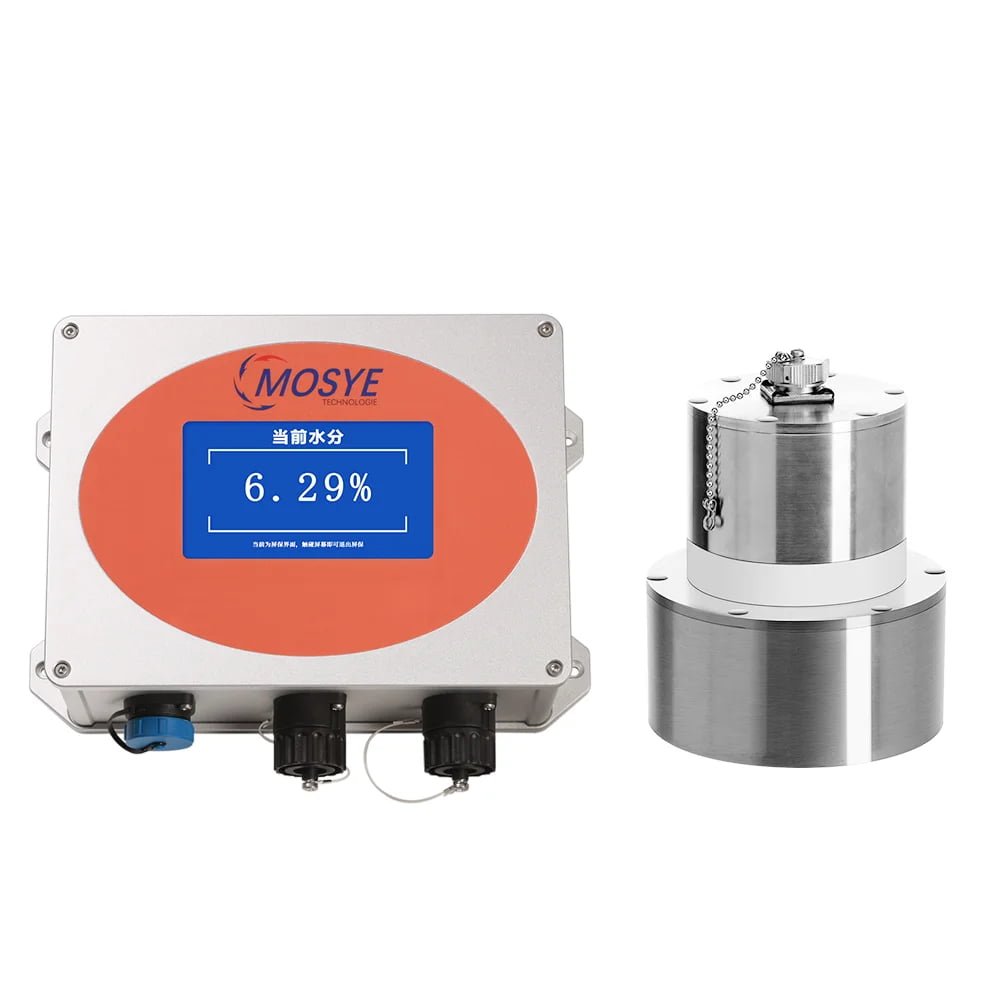

MS-210-H — High-Temperature Configuration： Thermally isolated sensor and transmitter design for material temperatures up to +120°C. Dimensions are customized. Final model selection depends on the material, process temperature, equipment structure and installation requirements.

Application Engineering

Evaluate the MS-204 for Your Process

Share your material characteristics, moisture range, process conditions and installation requirements with MOSYE application engineers. We will evaluate the appropriate probe, process connection and measurement configuration for your application.

Request Application Evaluation
