Title: Raw-Material and Blend Variation Description: Tobacco materials can vary in moisture, nicotine, sugars and other composition parameters. These differences can affect blending, processing conditions and final-product consistency. Card
Industry Solution
Tobacco Composition Analysis Solution
Tobacco composition can influence material characteristics, processing consistency and final-product quality.
The MS-540 Online Multi-Component NIR Analyzer provides continuous, non-contact measurement of selected tobacco composition parameters, helping manufacturers reduce batch-to-batch variation, improve blend consistency and make faster process-adjustment decisions during production.
The MS-540 Online Multi-Component NIR Analyzer provides continuous, non-contact measurement of selected tobacco composition parameters, helping manufacturers reduce batch-to-batch variation, improve blend consistency and make faster process-adjustment decisions during production.
Industry Challenges
The Problems This Solution Addresses
Title: Delayed Laboratory Feedback Description: Laboratory analysis requires sampling, sample preparation and testing. Delayed results can slow raw-material evaluation, blending decisions, process adjustment and quality review. Card
Title: Multiple Quality Parameters Description: Evaluating multiple composition parameters through separate laboratory tests can increase sampling requirements and laboratory workload. Continuous multi-component measurement provides additional process information between laboratory tests.
Engineered Response
MOSYE Solution
Specific Solution
Solution Description: The MS-540 uses multi-spectrum near-infrared measurement to analyze reflected signals from tobacco material without direct sensor contact. Application-specific calibration models convert the spectral response into selected composition values, allowing multiple validated parameters to be monitored continuously during production. Each target parameter is calibrated using representative tobacco samples and suitable laboratory reference data.

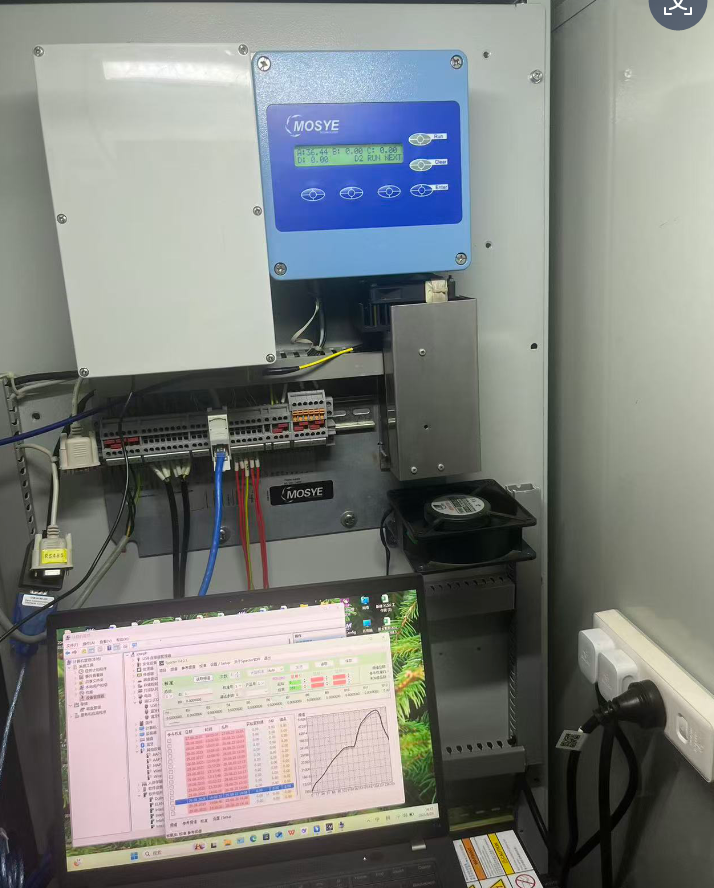

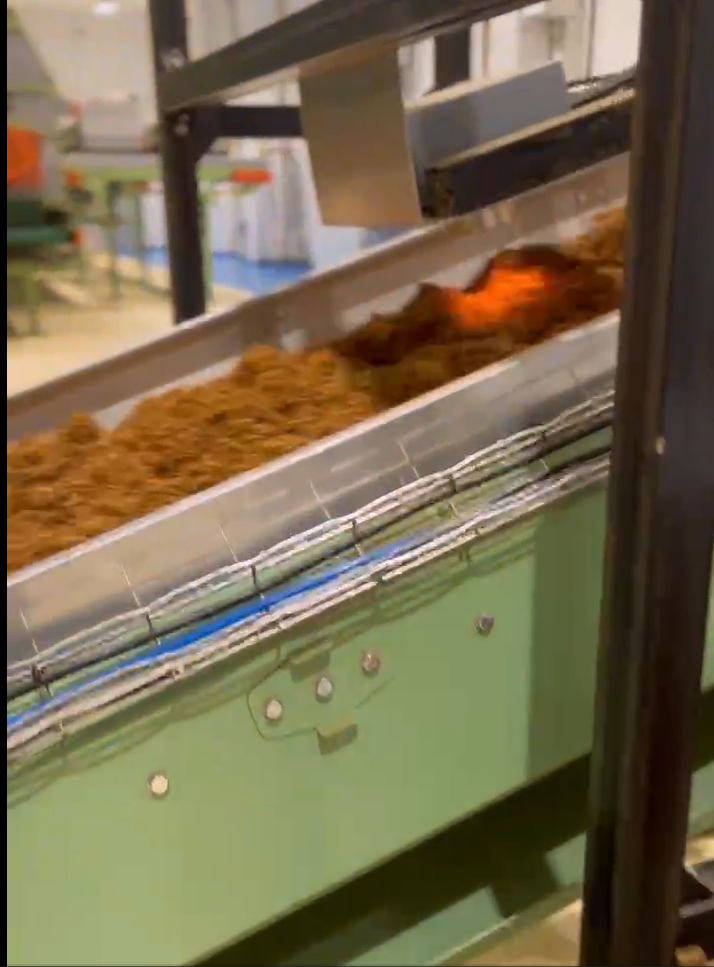

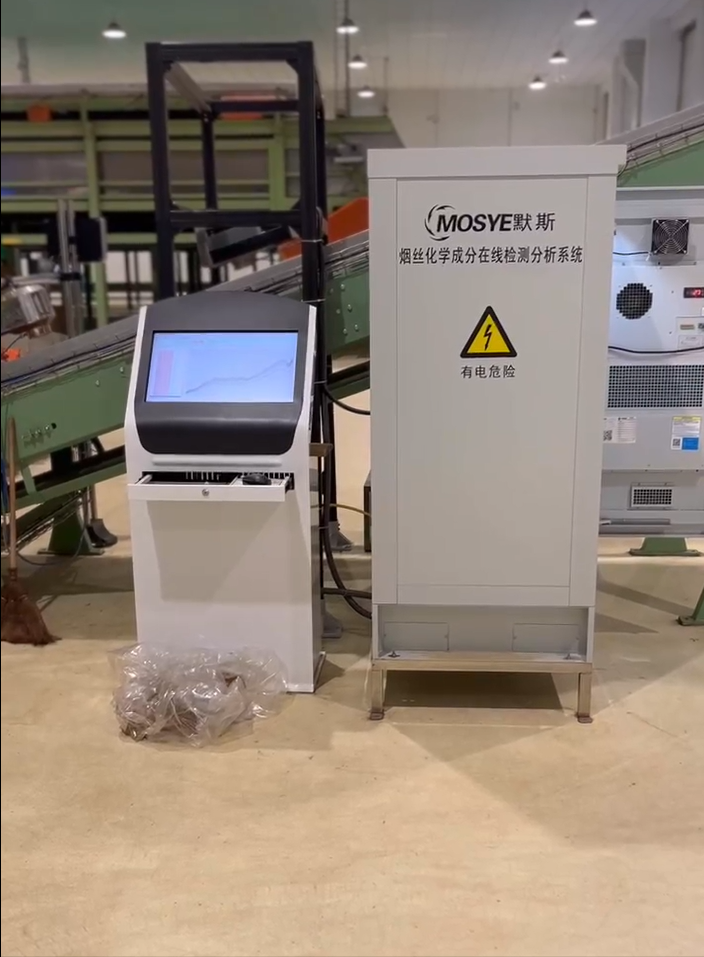

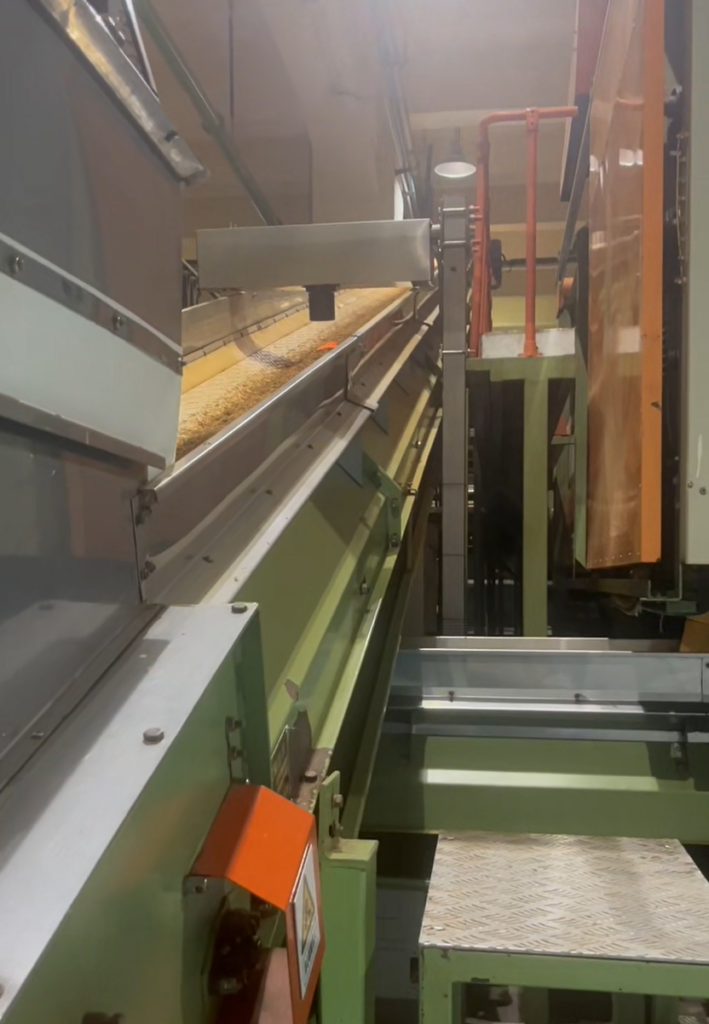

Typical Measurement Locations: Blending Lines · Cut-Tobacco Conveyors · Selected Material-Transfer Points · Selected Process-Equipment Outlets
A suitable and representative material presentation at the measurement point supports stable continuous measurement.
Typical Measurement Locations: Blending Lines · Cut-Tobacco Conveyors · Selected Material-Transfer Points · Selected Process-Equipment Outlets
A suitable and representative material presentation at the measurement point supports stable continuous measurement.
Solution Features
Multi-Parameter NIR Measurement Multiple validated tobacco composition parameters can be monitored with one analyzer. Continuous Non-Contact Measurement Provides continuous NIR measurement without direct sensor contact with the tobacco material. Application-Specific Calibration Target parameters are calibrated using representative tobacco samples and suitable laboratory reference data. Process Trend Monitoring Continuous composition data can support trend monitoring, deviation identification and production-quality review. Flexible Parameter Configuration Suitable configurations can support 2–8 validated parameter models according to the application. Process-System Integration Measurement data can be connected with selected PLC, DCS or quality-management systems according to the configured project.
Why MOSYE
Solution Advantages
Monitor Multiple Parameters in Real Time: One analyzer can provide continuous information for multiple validated tobacco composition parameters, helping production teams gain a broader view of material quality during processing.
Reduce Batch Variation Risk: Continuous NIR measurement provides composition trends between laboratory tests, helping manufacturers identify raw-material, blending and process variation earlier and maintain more consistent production conditions.
Reduce Routine Sampling : Online measurement can reduce dependence on routine manual sampling while laboratory reference methods remain available for calibration, verification and quality assurance.
Support Process Optimization: Continuous composition data can support blending evaluation, process adjustment, batch comparison and production-quality review.
Tailored Process Guidance
Improve Tobacco Quality Control with Real-Time Composition Data
Tell us about your tobacco material and the composition parameters you need to measure. MOSYE application engineers can evaluate the target parameters, calibration requirements, measurement position and system configuration for your application.
Request Solution Evaluation
